AMIG-350/350C/500/630

AMIG-350/350C/500/630

Digital CV MIG/MAG welding machine, CS/FCAW-G

Output t35.png t33.png t12.jpg t17.jpg       Input t39.png  t41.png       Process t26.jpg

Materials t45.png

Categories: , ,

Features

  • Perfect functions of starting arc and reducing melting ball  while stopping arc
  • ECO design
  • Capable of operation with extended 50M long welding cable
  • Save and recall 10 sets of user-defined parameters
  • Fault self-diagnosis over heat, over current, over voltage and  short circuit protections, error code display make it convenient for maintenance

Specification

AMIG350 AMIG500 AMIG630 AMIG350C
Rated input voltage/frequency (V/Hz) 3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA) 12.7 23 33.6 12.7
Rated input current (A) 19.3 35 51 19.3
Duty cycle (40℃) 60%@350A 100%@500A 100%@630A 60%@350A
OCV (V) 70 82 95 70
Adjustable current range (A) 40-350 40-500 40-630 40-350
Adjustable voltage range (V) 14-40 14-50 14-50 14-40
Trigger mode  2 /4T, Spot
Wire size (mm) 0.8, 1.0, 1.2 1.0, 1.2, 1.6 1.0, 1.2, 1.6 0.8,1.0,1.2
Job channels 10
Protection class IP23 IP21S
Insulation class H
Dimension (mm) 660*320*560 660*320*560 660*320*560 944*500*865
Weight (kg /lb) 40 /88.3 50 /110.3 60 /132.4 65/143.3

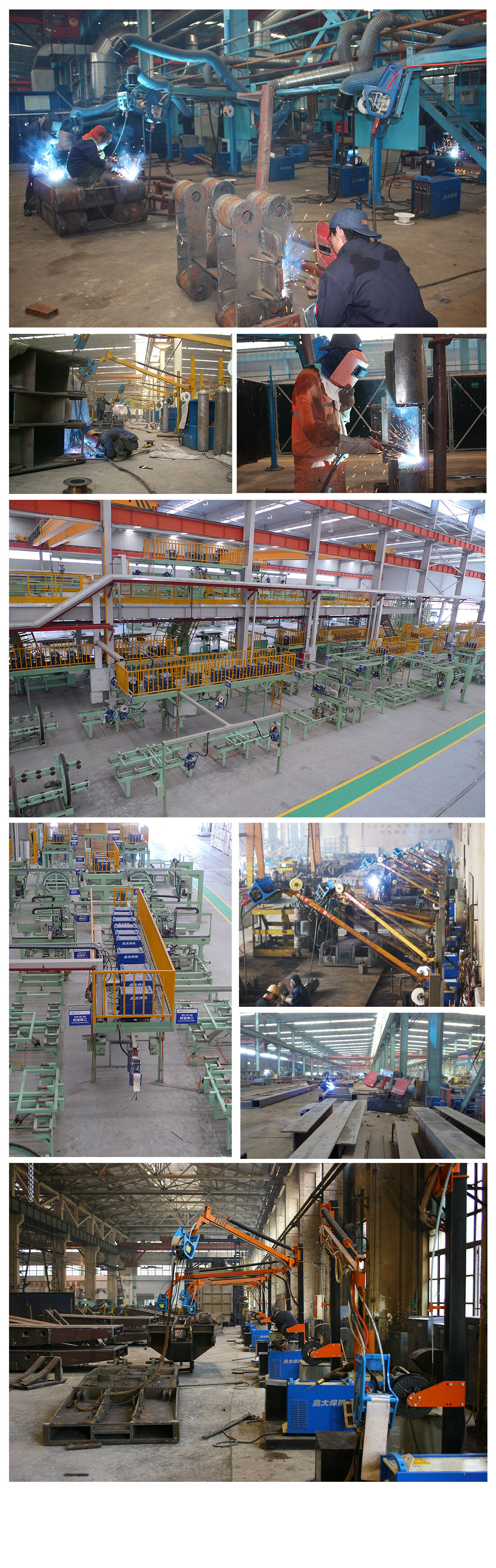

Application

AMI350 500.jpg



Accessories

Standard Equipments

  • 1 Power source
  • 1 Connected primary cable L=3m
  • 1 Ground cable L=3m
  • 1 Gas-cooled (or water-cooled) torch L=3m
  • 1 Wire feeder with Europe connection
  • 1 wire feeder cable L=5m

Standard Equipments

  • 1 Power source
  • 1 Connected primary cable L=3m
  • 1 Ground cable L=3m
  • 1 Gas-cooled torch L=3m
